cnReach™ provides affordable narrowband wireless connectivity for distribution automation, substation switch and circuit control, and SCADA telemetry.

Wireless communications: the key to enabling the Industrial Internet of Things

Cambium Networks cnReach

Maximize industrial IoT efficiency and minimize costs with a private IP network tailored to meet the specific needs of your business. Cambium industrial Internet solutions integrate voice, video, email, and web traffic alongside SCADA data from RTU’s, sensors, and control points - on a single all-IP network featuring centralized end-to-end administration. Narrowband wireless networks are rapidly deployable and enable utilities to connect people and things within operational range. Private wireless networks provide steadfast communications for concurrent applications and maximize connectivity while minimizing cost.

Smart Metering, substation switch and circuit control, SCADA telemetry, remote office connectivity, video surveillance, and asset tracking are all vital wireless connectivity functions that can be consolidated into one cost-effective IP network. Wireless solutions are optimal for critical infrastructure applications because fiber isn’t everywhere, and 3G/4G data services offer fewer essential features at a higher cost.

Maximize efficiency and minimize costs with a private IP wireless network tailored to meet the specific needs of your business. cnReach is available in 700 MHz licensed and 900 MHz licensed/unlicensed spectrum. The platform is also available as an IO Expander that enables any of Cambium’s other broadband products to take advantage of the extensive I/O capabilities that cnReach brings, such as two serial ports, two Ethernet ports and 8 digital/analog IO pins.

cnReach Features

Available in 700 MHz and 900 MHz licensed and unlicensed bands

AES 128/256-bit encryption with password authentication

Access point synchronization and adaptive modulation

Single and dual radio configurations for advanced relay and store-and-forward applications

Extensive I/O capabilities easing the transition from serial to all-IP networks with multiple serial ports, Ethernet ports and analog/digital I/O built-in

Plan the network with LINKPlanner and manage the entire network with cnMaestro

Cambium Networks N500 900 MHz

N500 900 MHz

  • ISM band
  • MAS band
  • 4.4 Mbps
  • 70 miles

The cnReach N500 900 MHz product is a single module that can be configured for either license or unlicensed operation and extensive I/O eases the migration to a reliable all-IP network. Adaptive modulation and access point synchronization enables scalability in the most dense environments.

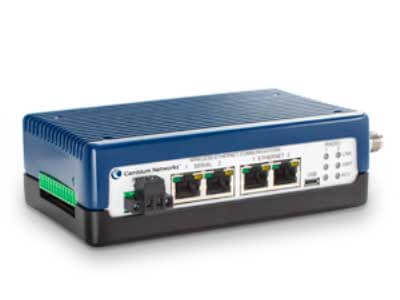

Cambium Networks N500 700 MHz

N500 700 MHz

  • 5W Tx Power
  • 250 kHz Channel
  • 757-758 MHz
  • 787-788 MHz

The cnReach N500 700 MHz provides reliable licensed band connectivity with extensive I/O capabilities to ease migration to all-IP networks. With dual radio options, a 5 W output power and adaptive modulation the 700 MHz cnReach enables connectivity in the most diverse environments.

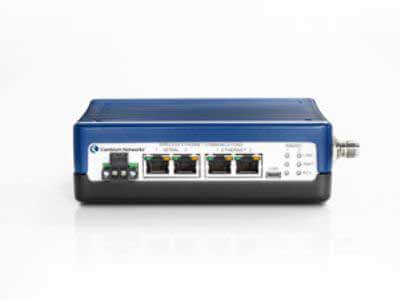

Cambium Networks N500 IO Expander

N500 IO Expander

  • 2 Serial Ports
  • 2 Ethernet Ports
  • 8 Digital/Analog I/O Ports

The cnReach IO Expander has a rich set of IO features that increases the number of applications and data sources that can be served by wireless networks. The IO expander can be added to other cnReach radios as well as broadband radios such as PTP 650, PTP 450i and PMP 450i SM’s.
