Cambium Networks ePMP 1000

Wireless service providers and enterprises need reliable, high-quality broadband connectivity that can be rapidly deployed and expanded. The ePMP platform provides stable coverage across large service areas and enhances your existing infrastructure.

The standard in wireless broadband

Our radios support an impressive 200+ Mbps throughput to deliver bandwidth-intensive services such as VoIP (Voice over IP), video and data to end users across multiple vertical markets. ePMP is optimized for outdoor applications, offering connectivity up to 40 miles with Cambium antenna accessories and further with higher gain products.

Using the 2.4 GHz and 5 GHz frequency spectrum, the ePMP architecture covers major unlicensed global bands and is the most effective connectivity solution for the world's under- and unconnected.

  • GPS Synchronization for seamless scalability and minimal self-interference.
  • Quality of Service (QoS) ensures superior consistency and integrity for VoIP (Voice over IP), video and data services.
  • Reliability is provided by quality components that have been rigorously field tested to minimize service requirement and maximize performance.

2.6 Software Release

New features include:

  • 5/10MHz channels for ePTP mode - great when a 20/40MHz channel isn't available.
  • 5/10MHz channels for WiFi mode - easing migration to ePMP.
  • Link Layer Discovery Protocol (LLDP) - allowing discovery of ePMP radios on neighbor devices such as routers.
  • eFortify enhancements - better interference tolerance for more resilient links.

ePMP™ 1000 Features

GPS Synchronization
ePMP’s timing synchronization to the GPS pulse allows for extensive frequency reuse.

Scalability
Advanced, scalable scheduling mechanism supports up to 120 subscribers without degrading overall system performance.

Quality of Service
Powerful multi-level Prioritization Scheme that can be configured by the network operator to allow for the delivery of differentiated services.

Security
128-bit AES encryption, L2 and L3 firewall rules, different user level support, HTTPs/SSH support provides enhanced security.

Flexible Modes of Operation
Provides extremely low latency for PTP deployments, highly scalable mode without GPS sync and TDD operation for synchronized towers

Rugged Design
Operates in ambient temperatures as high as 60 degrees and as low as -30 degrees Celsius.


Cambium Networks Force 180

Force 180

  • 5 GHz
  • 200 Mbps
  • 20 Km
  • 16 dBi

The ePMP Force 180 5 GHz subscriber module is the next generation of the ePMP 5 GHz Integrated Radio offering a higher-gain, integrated 16 dBi patch antenna. Installation and alignment are easy with the adjustable mounting bracket, and the Force 180 is small, sleek, and equipped with Gigabit Ethernet port to deliver the maximum throughput.

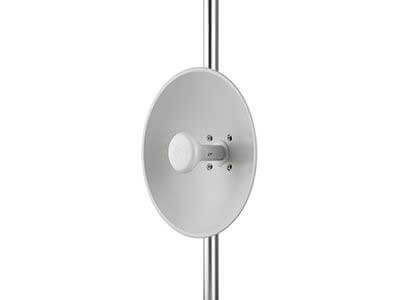

Cambium Networks Force 200 2.4 GHz

Force 200 2.4 GHz

  • 2.4 GHz
  • 200 Mbps
  • 40 km
  • 17 dBi

The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 2.4 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 17 dBi antenna combined with 30 dBm transmit power. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.


Cambium Networks Force 200 5 GHz

Force 200 5 GHz

  • 5 GHz
  • 200 Mbps
  • 25 dBi

The ePMP Force 200 adds a subscriber module and point-to-point (PTP) radio to ePMP’s 5 GHz line of products, designed to operate in high interference environments and provide superior throughput of over 200 Mbps of real user data. Long range deployment is enabled by the 25 dBi antenna. Configurable Modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 2 – 3 ms.


Cambium Networks GPS Sync Radio

GPS Sync Radio

  • 2.4 GHz
  • 5 GHz
  • 200 Mbps

Utilizing GPS sync, the ePMP is ideal for networks that require capacity and reliability for superior QoS in remote and underserved areas. This integrated PTP and PMP solution features an efficient GPS synchronized operational mode that permits highly scalable frequency reuse. When deployed with a sector antenna, the radio can be configured as a GPS Synchronized Access Point serving ePMP Integrated Radios configured as Subscriber Modules.


Cambium Networks Integrated Radio

Integrated Radio

  • 2.4 GHz
  • 5 GHz
  • 150 Mbps
  • 15+ km

The ePMP 1000 Integrated Radio can be configured as a Subscriber Module, an unsynchronized Access Point, or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronized Radio in either a PMP or PTP deployment, forming a GPS Synchronized solution.


Cambium Networks Connectorized Radio

Connectorized Radio

  • 2.4 GHz
  • 5 GHz
  • 150 Mbps

The ePMP 1000 Connectorized Radio has the flexibility to connect to a variety of external antennas such as 90 and 120 degree sector, omni, and high-gain panel or dish antennas. This versatility allows service providers to configure their network using high gain antennas to endure challenging environments. The ePMP 1000 Connectorized Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronized Radio in either a PMP or PTP deployment, forming a GPS Synchronized solution.The ePMP 1000 Connectorized Radio can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio. This radio will function as a client (slave) to an ePMP GPS Synchronized Radio in either a PMP or PTP deployment forming a GPS Synchronized solution.


Cambium Networks Force 180

Force 110

  • 5 GHz
  • 150 Mbps
  • 40+ km

The ePMP Force 110 high gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 150 Mbps of real user data) in high interference environments. The Flexible Mode of operation ensures robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and exceptionally low 6 ms latency. ePMP Force 110 is comprised of ePMP 1000 Connectorized Radio and ePMP 110A-525 Dish.


Cambium Networks Force 180

Force 110 PTP

  • 5 GHz
  • 220 Mbps
  • 40+ km

The ePMP Force 110 PTP high gain integrated solution enhances range (25 dBi antenna with 30 dBm of transmit power) and improves throughput (up to 200 Mbps of real user data) in high interference environments. Force 110 PTP acheives 2 ms of round-trip latency and provides a 802.3af compliant Gigabit Ethernet port. Comprised of the ePMP 1000 Connectorized Synchronized Radio and the ePMP110A-525 Dish.
